Description

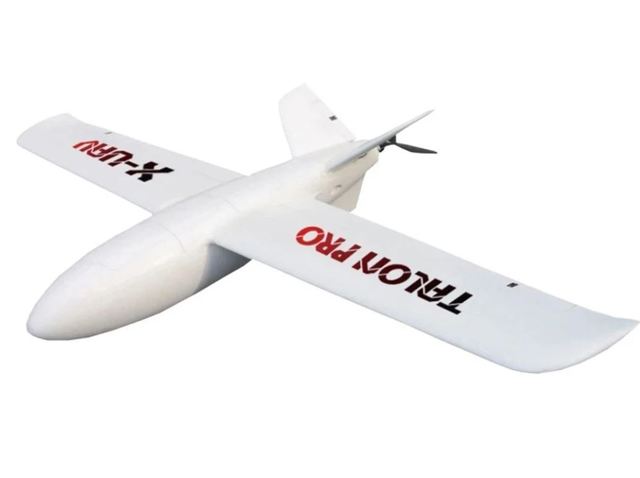

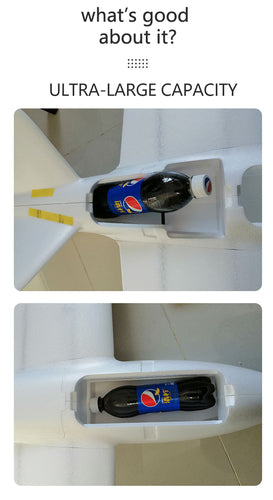

The X-UAV PNP Talon Pro 1350 mm is a high-performance fixed-wing FPV / aerial survey aircraft built for long-endurance, large-payload flights. With an aerodynamic V-tail design and expansive internal space, it is ideal for mapping, photogrammetry, or advanced recreational flights.

Key Features

• Wingspan: 1350 mm (53.15 in)

• Length: 828 mm (32.6 in)

• Kit Weight (airframe only): ~ 400 g

• Recommended Takeoff / Flying Weight: 3 – 4 kg

• Payload Capacity: 0.5 – 1 kg

• Flight Time Estimate: 1.5 – 3 hours (depending on payload, battery, and conditions)

• Maximum Altitude: Up to 5,000 m in optimal conditions

• Wind Resistance: Level 6 (moderate wind capability)

• Landing Style: Belly landing (no landing gear included in stock version)

What’s Included (PNP Version)

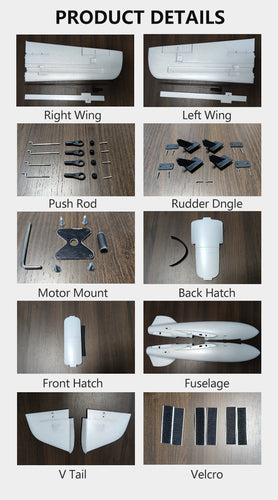

• X-UAV Talon Pro 1350 mm EPO V-tail airframe

• 3542 KV920 Motor (2820 stator size)

• 60A ESC

• Servos: 2 × 17 g + 2 × 9 g

• 9×6e Propeller

Note: Battery, transmitter/receiver, autopilot, camera and glue are not included in the PNP package.

Recommended Components (Not Included)

• Battery: 4S 14.8 V LiPo around 5,000–6,000 mAh (or equivalent)

• Autopilot / Flight Controller and necessary wiring

• FPV / Camera gear for aerial imaging / survey

• Transmitter / Receiver (minimum 5–6 channels)

• Balancing charger for your chosen battery

Ideal Use Cases

• Aerial surveying & mapping

• Long-range FPV missions

• Payload delivery (light sensors, cameras)

• Research UAV build / customization
