Overview

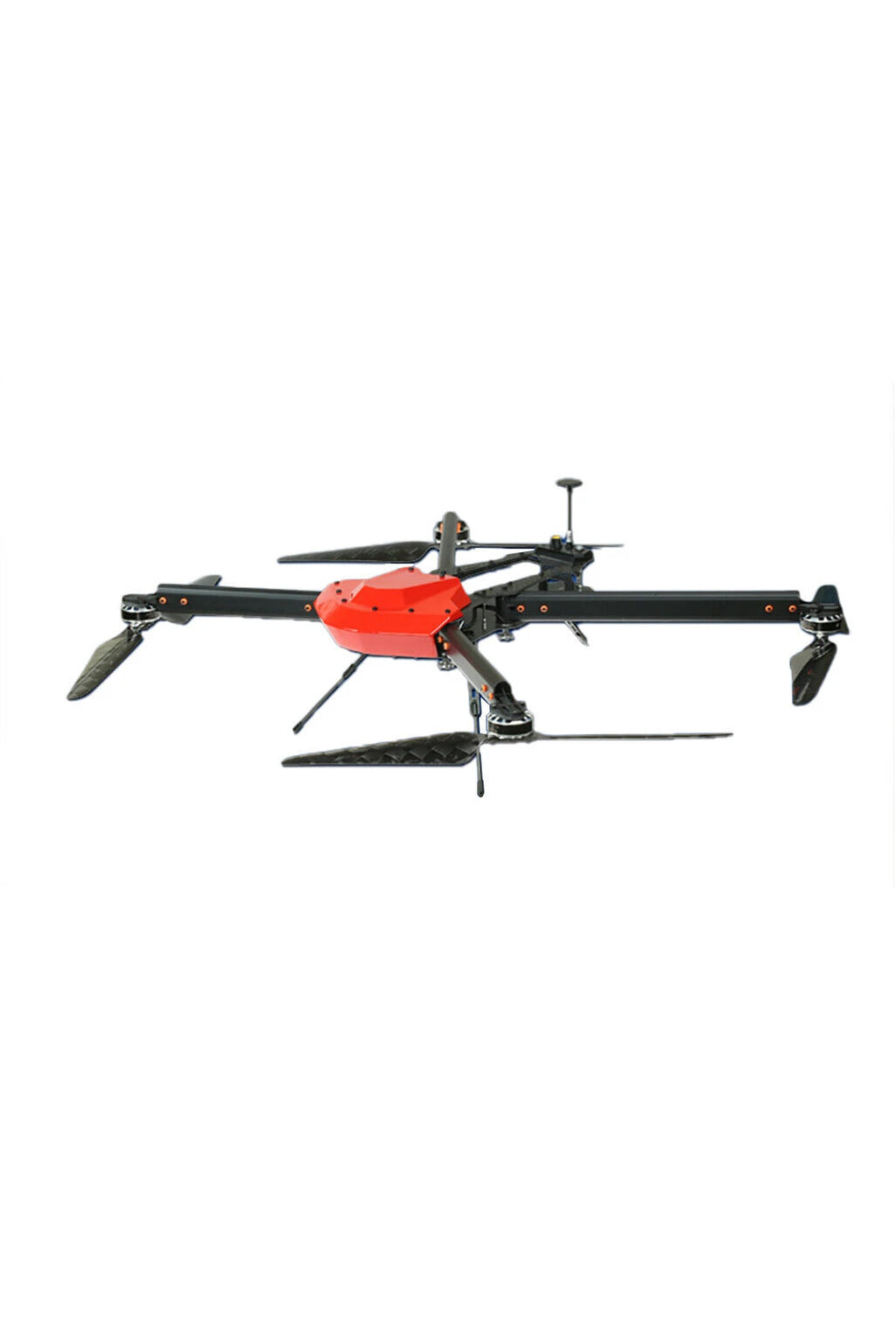

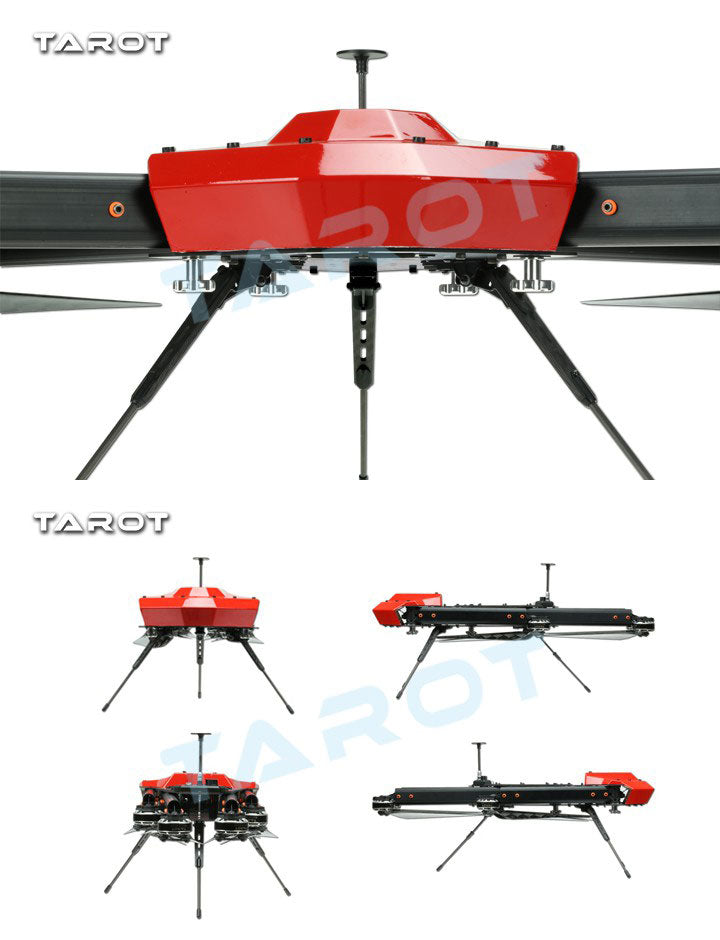

The Tarot Peeper I (TL750S1) is a long-endurance UAV (quadcopter) designed for industrial, inspection, mapping, surveillance, and monitoring applications. Its frame is optimized for flight time, modularity, and payload flexibility. The “combo” version comes preassembled with motors, ESCs, propellers, power distribution, and management systems.

This model is ideal for users who want a high-endurance platform without the hassle of sourcing all components separately.

Key Features & Selling Points

Extended Flight Time Capability
In practical use, with a GoPro 3-axis gimbal (~250 g), video transmission module, and a 10,000 mAh LiPo battery, the Peeper I has been demonstrated to fly for ~47 minutes.

Because of its design, the system supports larger batteries (up to 15,000 mAh) to further enhance flight duration.

Tool-Free Folding & Portability

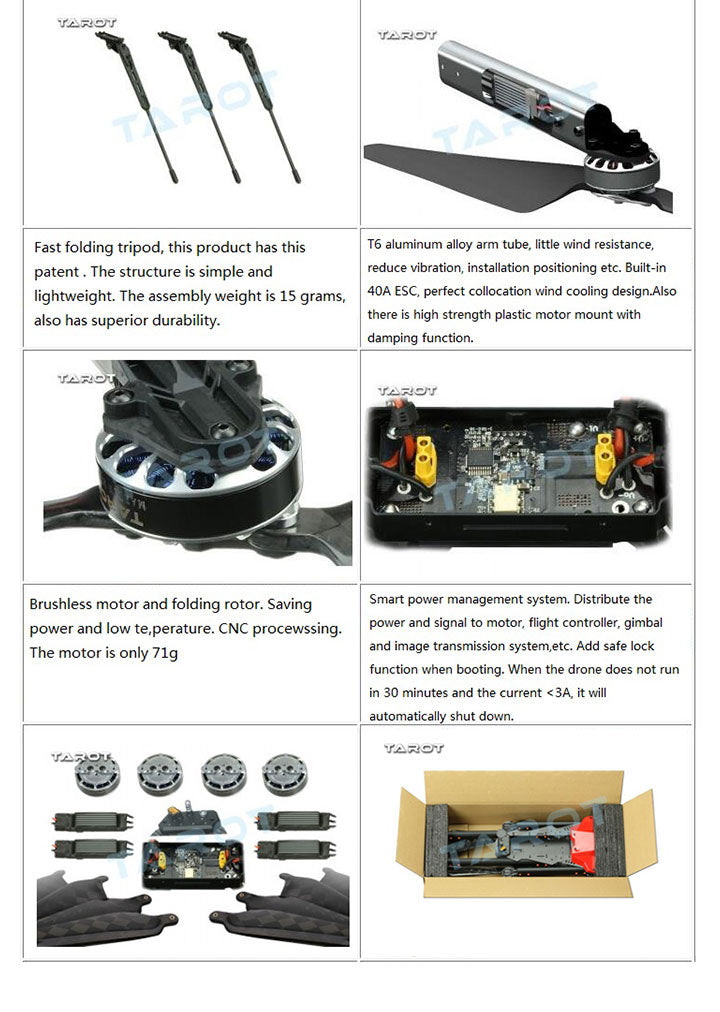

The arms use a patented quick-folding mechanism that allows tool-free folding of arms, reducing carry volume and facilitating transport.

Lightweight & Strong Frame
The airframe uses industrial-grade structural materials, balancing rigidity, vibration damping, and light weight. The net weight without battery is ~1.28 kg.

The total weight (kit including packaging) is ~1.88 kg.

High Efficiency Motors & Propellers
Uses Martin (Tarot’s brand) brushless motors (model TL2955) together with folding carbon fiber propellers (TL2948), optimized for endurance.

Comes with 40 A ESCs for robust performance.

Modular Power & Control System
Includes a Power Distribution Unit (PDB) and a Power Manager for handling power routing and safety.

The design supports a range of optional upgrades:

ZYX-M flight control (ZYX25)

ZYX-OSD video overlay system (TL300C)

3-axis gimbals (GoPro style) (TL3T01)

Thermal (FLIR) gimbal modules (TL01FLIR)

Video transmitters / receiver systems (5.8 GHz, 1.2 GHz, HD links)

Flexible Battery Support
The battery compartment supports side-mounting of batteries in the size range of ~10000 mAh to 15000 mAh (6S / 22.2 V).

Before flight, users should verify center-of-gravity alignment to maximize flight time and stability.

Industrial / Professional Use Cases
Designed for applications such as:

Infrastructure / power line inspection

Forest fire monitoring / search & rescue

Urban security / surveillance

Environmental monitoring

Mapping / photogrammetry (with optional gimbal / camera add-ons)

Specification Summary
Parameter    Value
Quadcopter model    Tarot Peeper I TL750S1
Diameter / Wheelbase    750 mm

Frame Height    258 mm

Main Blade Length    210 mm

Main Blade Diameter    440 mm

Net Weight (without battery)    ~1.28 kg

Combo / Kit Weight (packaging)    ~1.88 kg

Measured Flight Time (with payload)    ~47 minutes (with GoPro 3-axis gimbal, video module, 10000 mAh battery)

Battery Compatibility    6S / 22.2 V, 10000 mAh – 15000 mAh range

Propellers    17.5" folding carbon fiber prop TL2948 (2 included)

Motors    4 × 4008 brushless motors (Martin / Tarot) TL2955 series

ESCs    4 × 40 A brushless ESCs

Included Electronics    Power distribution unit, power manager

Optional Upgrades    Flight controller (ZYX-M / ZYX25), OSD (TL300C), gimbals, FPV systems, thermal modules

In-Box / Combo Contents (Standard)

When you purchase the TL750S1 combo, the package includes:

1 × FPV drone frame / body shell

2 × 17.5" folding carbon fiber propellers (TL2948)

4 × 4008 brushless motors (TL2955)

4 × 40 A ESCs

1 × Power distribution board

1 × Power manager

1 × English user manual
