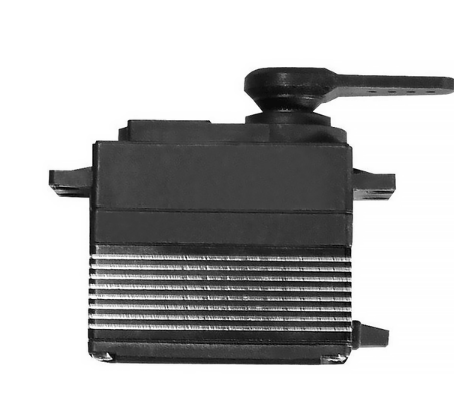

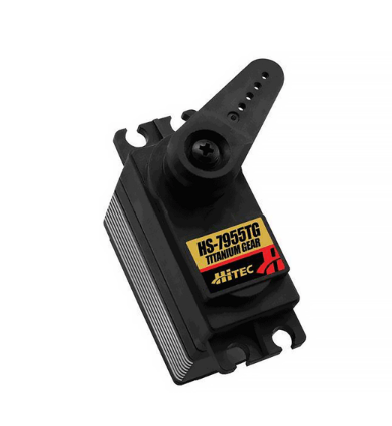

The Hitec HS-7955TG High Torque Titanium Gear Coreless Ultra Premium Servo is engineered for demanding applications requiring high torque and precision. Featuring a coreless motor and titanium gear train, this servo delivers exceptional performance and durability, making it ideal for large-scale RC aircraft, helicopters, and vehicles.

Key Features
High Torque Output: Delivers up to 333 oz-in (24 kg-cm) of torque at 6.0V, ensuring robust performance in heavy-duty applications.

Coreless Motor: Provides faster response and smoother operation compared to traditional motors.

Titanium Gear Train: Offers superior strength and wear resistance, enhancing longevity under high-stress conditions.

G2 Digital Circuit: Incorporates Hitec's second-generation programmable digital circuit, doubling the resolution of previous models and adding programmable overload protection.

Dual Ball Bearings: Support the output shaft for reduced friction and increased precision.

Programmable Functions: Includes end point adjustments, direction, fail-safe settings, dead band, speed, overload protection, resolution, data save/load, and program reset.

Specifications
Operating Voltage Range: 4.8V to 6.0V

Speed (sec/60°):

Torque:

4.8V: 250 oz-in (18 kg-cm)

6.0V: 333 oz-in (24 kg-cm)

Current Draw at Idle: 9 mA

No Load Operating Current Draw: 300 mA

Stall Current Draw: 4,200 mA

Dead Band Width: 1 µs

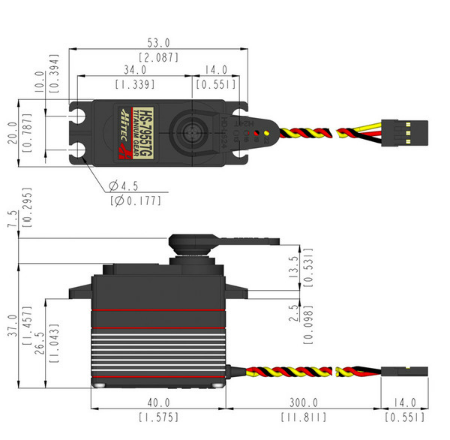

Dimensions: 1.57 x 0.78 x 1.45 inches (40.0 x 20.0 x 37.0 mm)

Weight: 2.29 oz (65 g)

Gear Material: Titanium

Bearing Type: Dual Ball Bearing

Output Shaft: Standard 24T spline

Case Material: Plastic/Aluminum

Dust/Water Resistance: Splash Proof

Connector Wire Gauge: 22 AWG

Applications
This servo is suitable for:

Large-scale sport and 3D aircraft (30–40%)

Sailplanes (2 meters and up)

Electric helicopters (700mm and up)

Gas helicopters (90+ class)

1/10 and 1/8 scale on-road and off-road vehicles, including monster trucks, buggies, truggies, and short course trucks

Sailboats over 1 meter and scale power boats up to .90 size
