$65.55 USD
Product Details
About this product

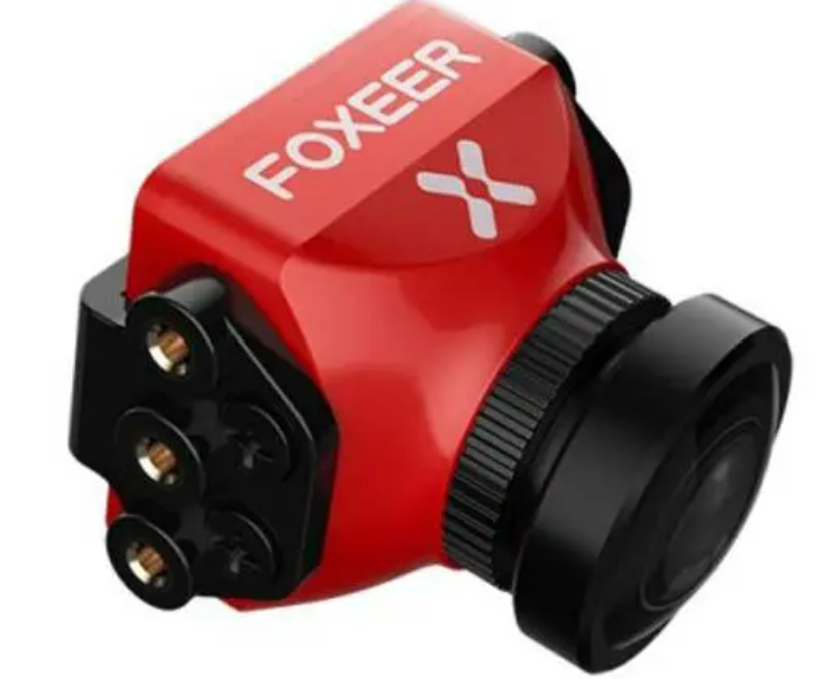

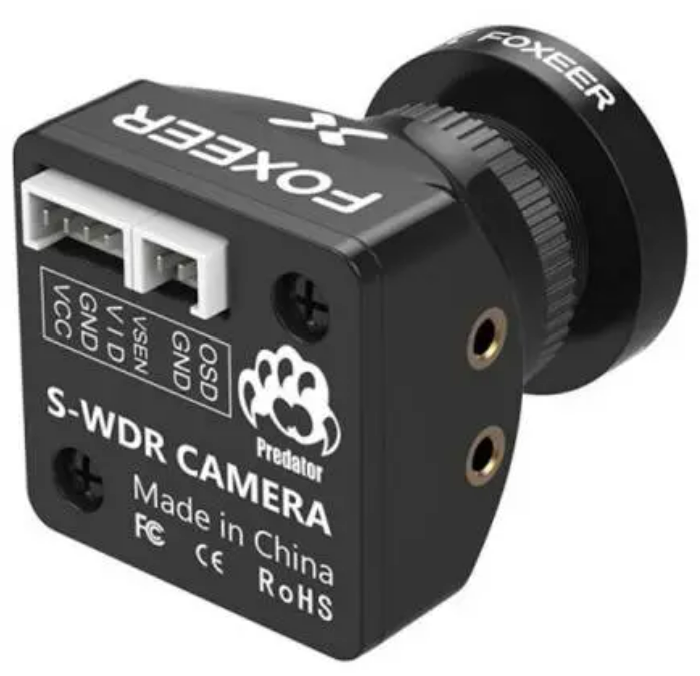

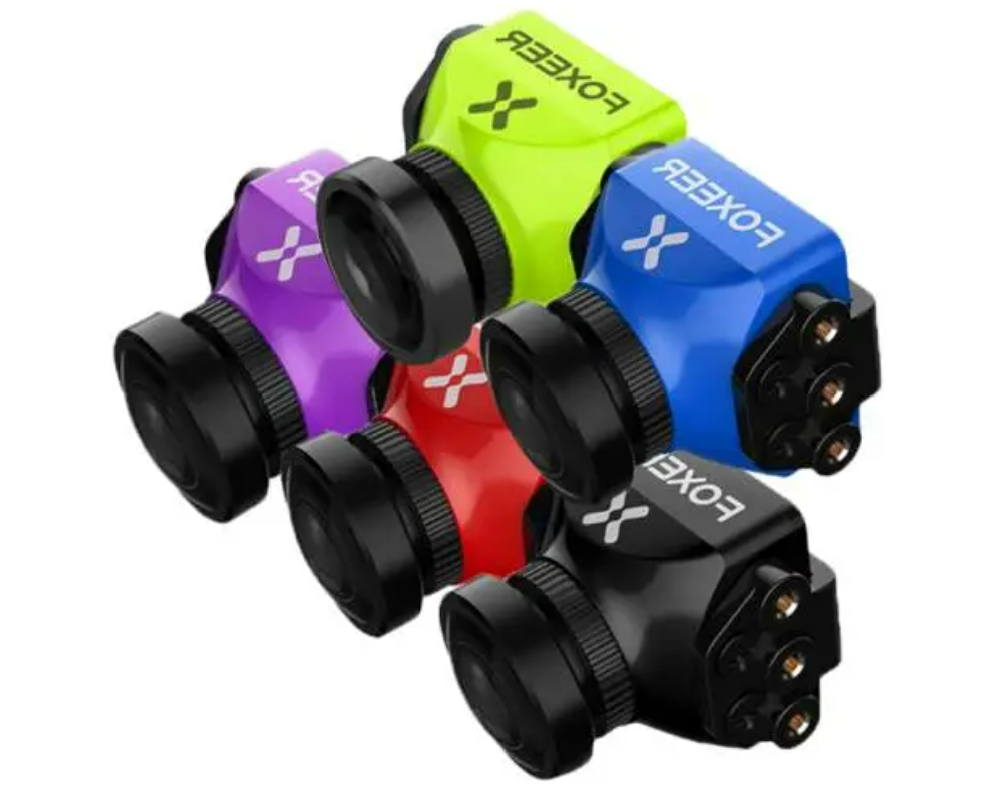

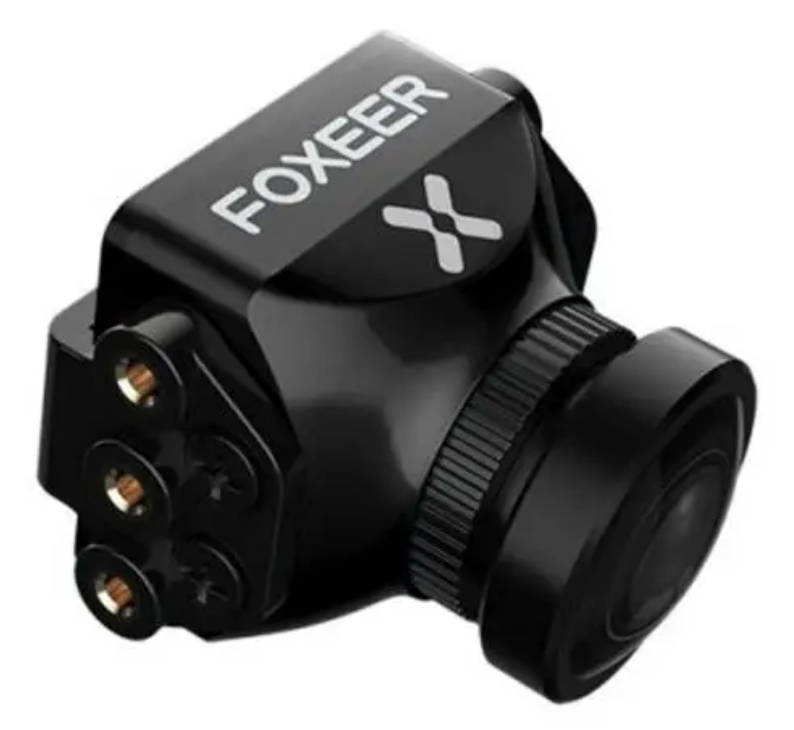

The Predator 5 Mini 1000TVL is a 22x22mm FPV camera by Foxeer. This camera features a 1/3" CMOS sensor, 1000TVL resolution, 4ms latency, NTSC/PAL switchable, image flip, super WDR function, and many other cool features! Compare to the Predator 4, the Predator 5 has a more natural image, and it is also exclusive for LEDs.
Two camera lenses to choose from: 1.8mm, 2.5mm.
Specifications
- Sensor Type: Sony 1/3" CMOS Sensor
- Scale: 4:3(default)/16:9 Switchable
- Tv System: PAL(default)/NTSC Switchable
- Resolution: 1000TVL
- Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
- Video Output CVBS Analog Signal
- FOV
- 1.8mm: FOV-H:115° FOV-D: 150°
- 2.5mm: FOV-H:105° FOV-D: 130°
- Shutter Speed: Auto
- Minimum Illumination: 0.01Lux
- White Balance: Auto
- DNR: 3DNR 2DNR
- WDR: Super WDR
- DAY/NIGHT: Auto/Color/B&W

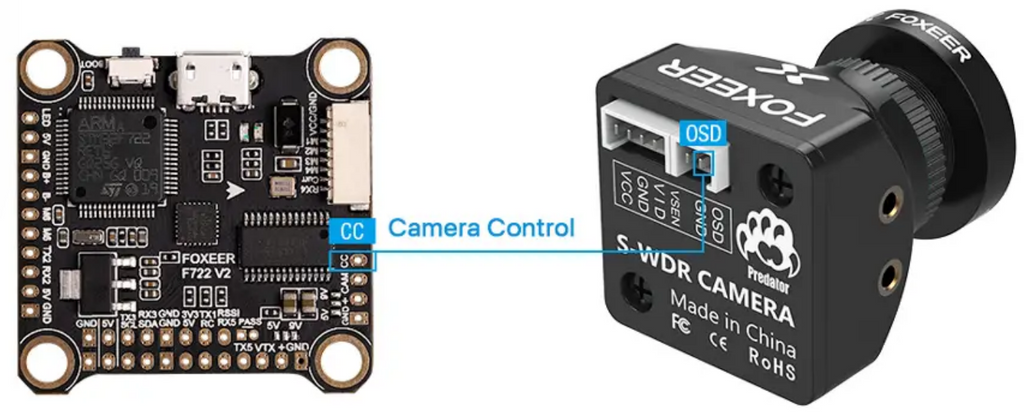

- Flight OSD: Voltage/Cam Title/Time/Cross Hair
- Mode: DAY/CLOUDY/Night/LED
- Fast Mode Switch: Long Press Right Button to switch among DAY/CLOUDY/Night/LED
- Input Voltage: 4.5V~20V
- Language: ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文
- Working Temperature: -10°~50°C RH90% MAX
- Working Humidity: 20~80%
- Storage Temperature: -20°~70°C
- Consumption: 50mA±15% @ DC12V 115mA±15% @ DC5V
- Dimension: 22*22mm; 28*22mm(Add Bracket)
- Weight: 12g(Exclude cable)
Includes
- 1 x Foxeer Predator 5 Mini
- 1 x OSD Board
- 1 x Bracket
- 12 x Bracket Screws
- 6 x Bracket Ring
- 1 x 2pin OSD Cable
- 1 x Servo Cable
