$42.03 USD
Product Details

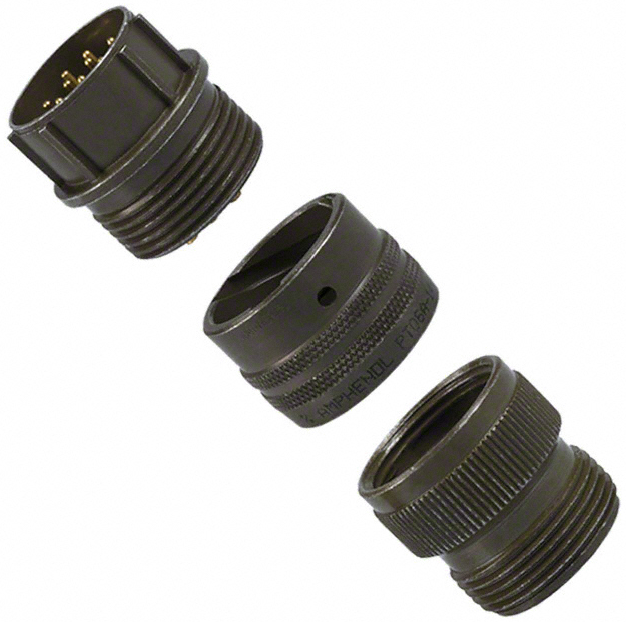

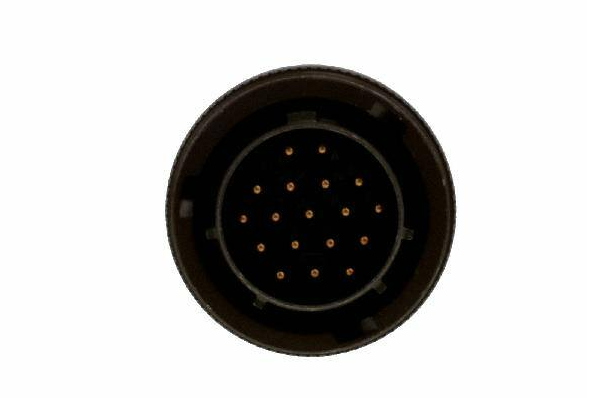

The Amphenol PT06A-14-18P is an 18-position circular plug connector from the PT Series, designed in accordance with MIL-DTL-26482 Series I specifications. Featuring a bayonet coupling mechanism and solder cup terminations, this connector ensures secure and reliable connections in demanding environments. Its aluminum shell with olive drab cadmium plating offers durability and corrosion resistance, making it suitable for military, aerospace, and industrial applications.
Key Features
18-Position Configuration: Accommodates 18 contacts in a compact size 14 shell.
Bayonet Coupling: Provides quick and secure mating with a three-point locking system.
Solder Cup Termination: Facilitates reliable and straightforward wire connections.
Durable Construction: Aluminum shell with olive drab cadmium plating ensures corrosion resistance and durability.
High-Performance Contacts: Gold-plated copper alloy contacts for excellent conductivity and resistance to corrosion.
Wide Operating Temperature Range: Functions reliably from -55°C to +125°C.
Compliance: Meets MIL-DTL-26482 Series I standards.
Specifications
Parameter Value
Connector Type Plug, Male Pins
Number of Positions 18
Shell Size - Insert 14-18
Mounting Type Free Hanging (In-Line)
Termination Style Solder Cup
Fastening Type Bayonet Lock
Shell Material Aluminum
Shell Finish Olive Drab Chromate over Cadmium
Contact Material Copper Alloy
Contact Plating Gold
Insert Material Neoprene
Operating Temperature -55°C to +125°C
Current Rating Up to 7.5 A
Voltage Rating Up to 600 V
Compliance MIL-DTL-26482 Series I
RoHS Status Non-compliant
Applications
Ideal for use in:
Military and aerospace systems
Industrial machinery and equipment
Transportation systems
Instrumentation and control systems
