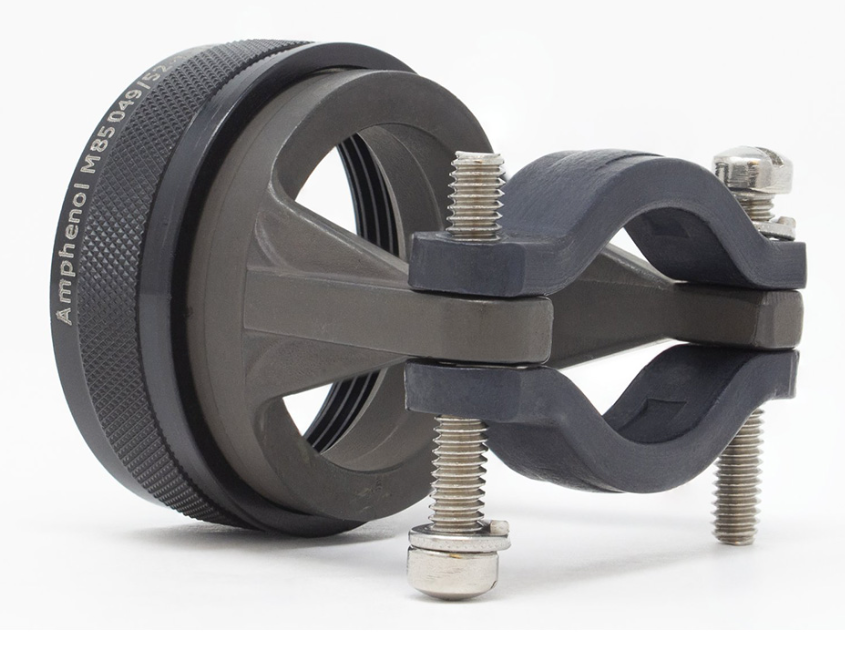

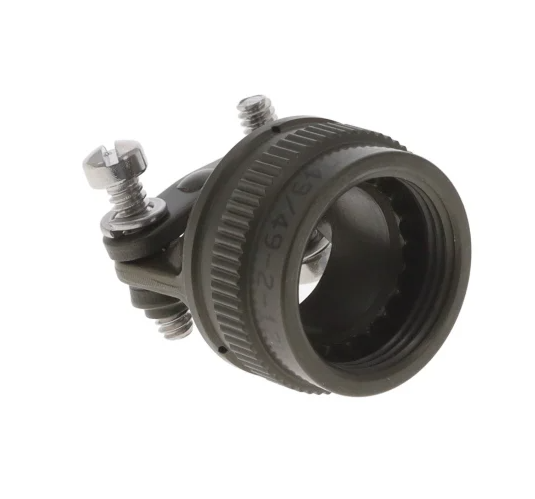

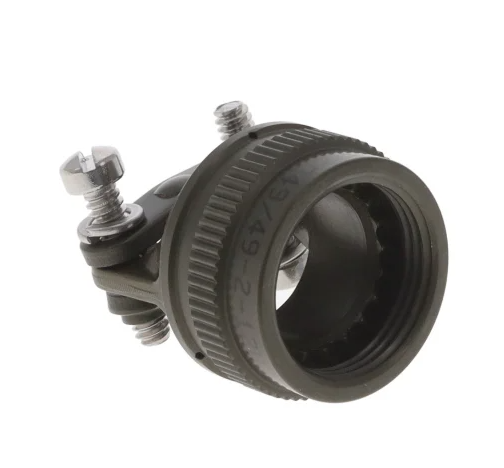

The Amphenol PCD M85049/49-2-12W is a MIL-spec circular connector backshell with integrated cable clamp designed to provide reliable strain relief and secure cable management for aerospace and military-grade connectors. Manufactured to the SAE AS85049 (formerly MIL-DTL-85049) standard, this backshell ensures robust mechanical protection and long-term reliability in demanding electrical interconnect applications.

Constructed from durable aluminum alloy with cadmium plating and an olive-drab finish, the backshell offers excellent corrosion resistance and environmental durability. Its straight (180°) cable exit configuration and clamp-screw design securely fasten cables to the connector, reducing stress on contacts and preventing cable damage during vibration or movement.

This model is designed for shell sizes 12 and 13 and is commonly used with MIL-DTL-38999 Series I and II connectors, making it suitable for aerospace, defense, and high-reliability electronic systems.

Key Features

• MIL-spec backshell compliant with SAE AS85049 standards

• Integrated cable clamp for strain relief and cable retention

• Straight (180°) cable exit configuration

• Aluminum alloy construction with cadmium plating

• Olive drab finish for military-grade applications

• Designed for shell sizes 12–13 connectors

Technical Specifications

• Type: Circular connector backshell / cable clamp

• Series: AS85049 (M85049)

• Material: Aluminum alloy

• Plating: Cadmium (olive drab)

• Cable Opening: ~0.190″ – 0.328″ (4.83–8.33 mm)

• Cable Exit Angle: 180° (straight)

• Connector Compatibility: MIL-DTL-38999 Series I & II

• Shell Size: 12 / 13
