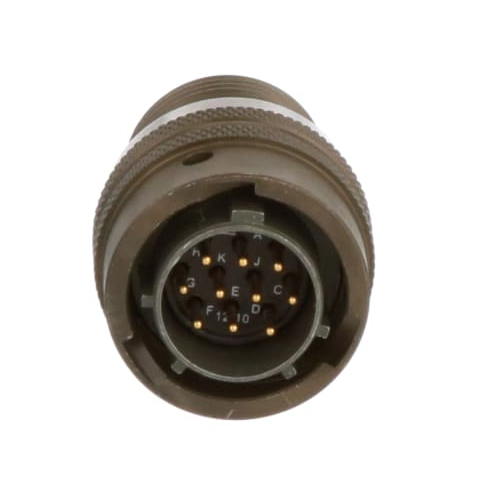

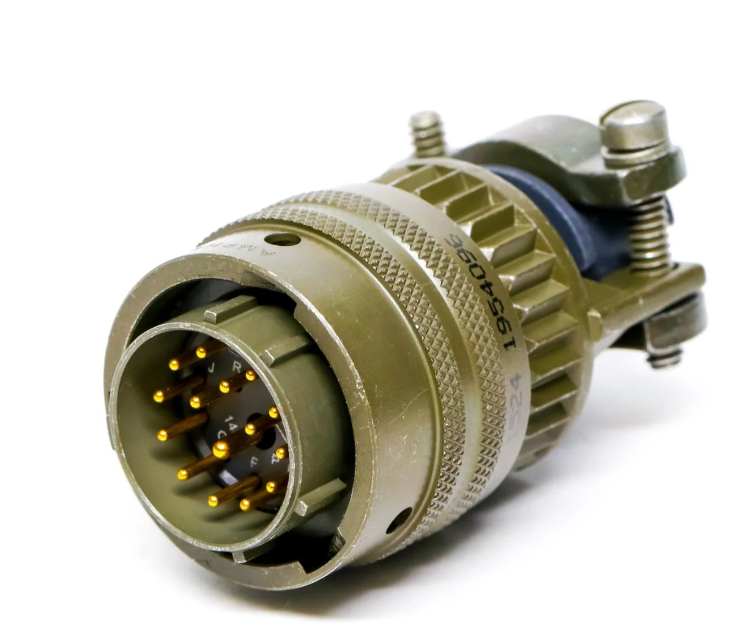

The Amphenol Industrial PT06A-12-10P is a 10-position circular MIL-spec plug connector designed for rugged electrical interconnect applications in aerospace, industrial, transportation, and military equipment. Part of the Amphenol PT Series (MIL-DTL-26482 Series I), this connector provides reliable performance in harsh environments while maintaining a compact and lightweight design.

The connector features male pin contacts with solder-cup terminations, allowing secure wire attachment and easy assembly in cable harnesses. A bayonet coupling mechanism provides quick and secure mating with compatible receptacles, ensuring stable connections even in high-vibration environments.

Its aluminum shell with olive-drab cadmium finish offers excellent durability and corrosion resistance, while the neoprene insert provides environmental sealing and insulation between contacts. These features make the connector suitable for demanding applications requiring reliable signal or power transmission.

Key Features

• MIL-DTL-26482 Series I compliant circular connector

• 10-position plug with male pin contacts

• Solder-cup terminations for secure wire connections

• Bayonet coupling for fast and secure mating

• Aluminum shell with olive-drab cadmium finish for corrosion resistance

• Neoprene insert insulation for environmental durability

Technical Specifications

• Connector Type: Circular plug

• Series: PT Series (MIL-DTL-26482)

• Number of Positions: 10

• Contact Size: #20 contacts

• Shell Size / Insert Arrangement: 12-10

• Termination: Solder cup

• Coupling Method: Bayonet lock

• Housing Material: Aluminum

• Contact Finish: Gold-plated

• Operating Temperature: −55 °C to 125 °C

• Current Rating: ~7.5 A per contact

• Voltage Rating: Up to ~600 V
