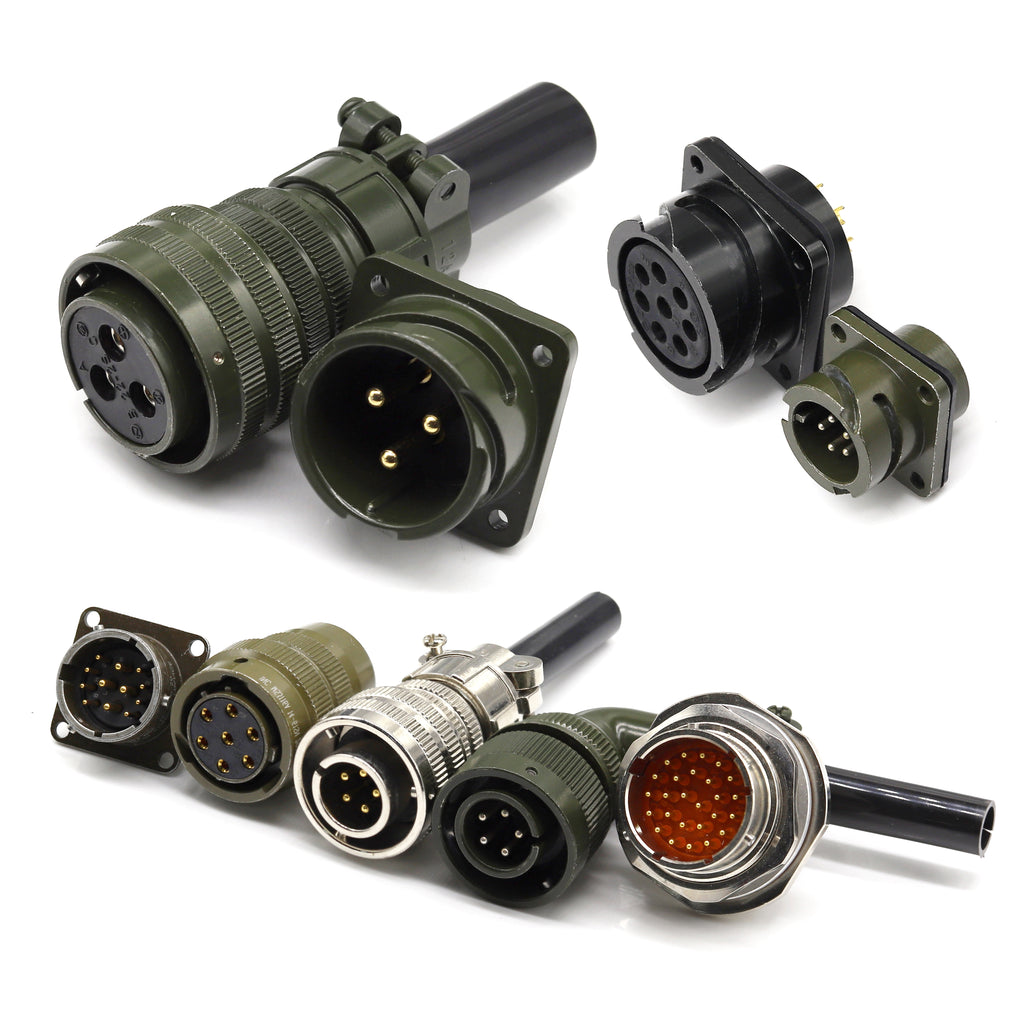

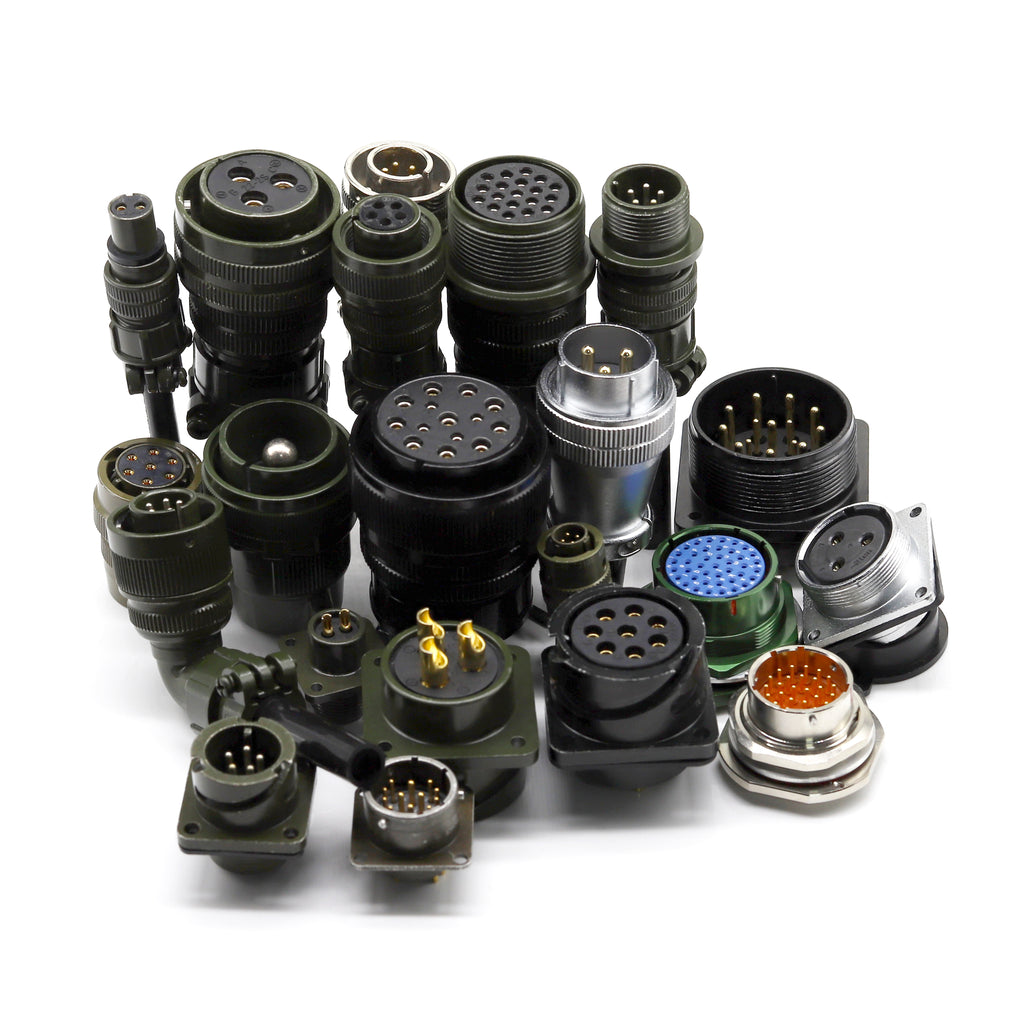

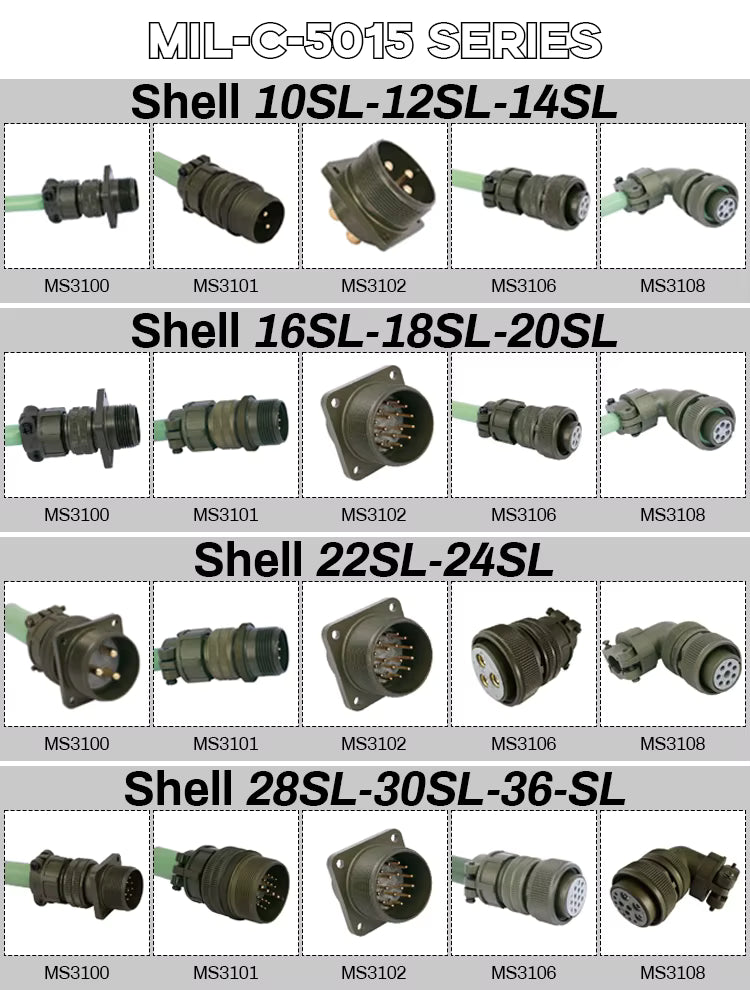

MIL-5015 Circular Connector
The MIL-5015 Connector is a durable, high-performance circular connector widely used in automotive, industrial, and military applications. Featuring copper alloy contacts, flame-retardant insulation, and IP67/IP68 waterproof protection, it delivers reliable performance in harsh environments. Available in both male and female versions with multiple shapes and mounting options.
Key Features
- Application: Automotive, industrial, military electronics
- Contact Material: Copper alloy for excellent conductivity
- Gender Options: Male & Female
- Connector Shapes: Round, Flat, Rectangle
- Connector Types: Straight & Right-angled
- Waterproof Protection: IP67 / IP68 (IP69K optional)
- Operating Temperature: −55 ℃ to +125 ℃
- Working Temperature: −25 ℃ to +85 ℃
- Pin Count Options: 1–64 pins (standard); up to 144 pins available
- Current Rating: 4 A – 25 A (by configuration)
- Durability: 500 mating cycles
- Compliance: CE certified

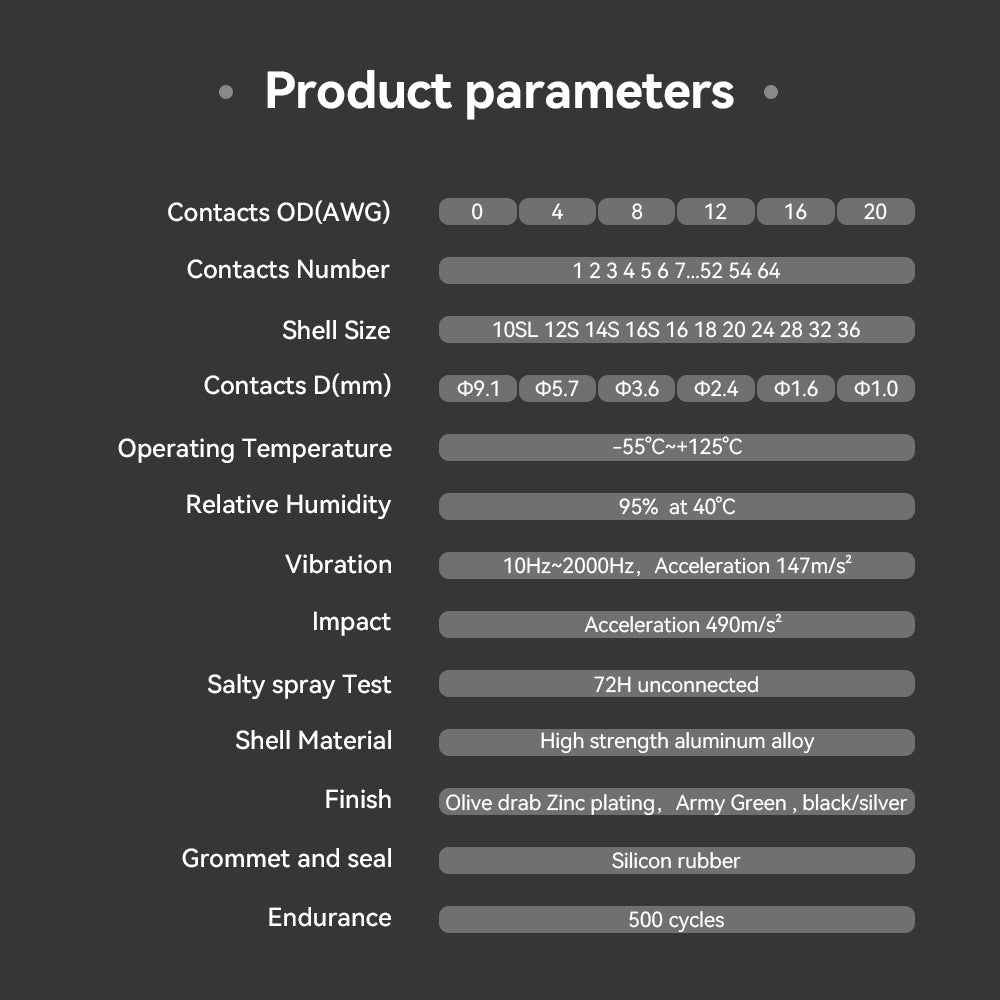

Specifications
| Model Number | MIL-5015 |
| Brand Name | DIWEI |
| Place of Origin | Guangdong, China |
| Application | Automotive / Industrial / Military |
| Contact Material | Copper Alloy |
| Number of Pins | 1–64 pins (standard); up to 144 pins available |
| Available Pin Code | A |
| Gender | Male and Female |
| Connector Shape | Round / Flat / Rectangle |
| Connector Type | Straight / Right Angle |
| Operating Temperature | −55 ℃ ~ +125 ℃ |
| Working Temperature | −25 ℃ ~ +85 ℃ |
| Waterproof Degree | IP67 / IP68 (IP69K optional) |
| Insulator | Synthetic Rubber, UL94V-0 (220 ℃) |
| Rated Current | 4 A – 25 A |
| Withstand Voltage | 500 V |
| Insulation Voltage | ≥ 5000 V |
| Vibration Resistance | 5000 V |
| Durability | 500 mating cycles |
| Certification | CE |
What’s Included
- MIL-5015 Connector (select Gender, Shape, Pin Count)
- Matching backshell / accessories as per selected configuration
- Basic documentation
Common Uses
- Automotive harnesses and power distribution
- Industrial machinery & sensors
- Military-grade equipment and outdoor electronics
Note: Please select your pin count, gender, shape, and connector type from the options above. Electrical ratings and dimensions may vary by configuration.
