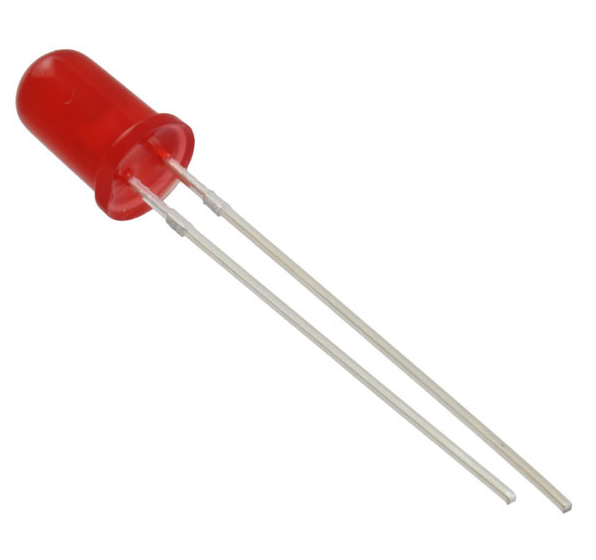

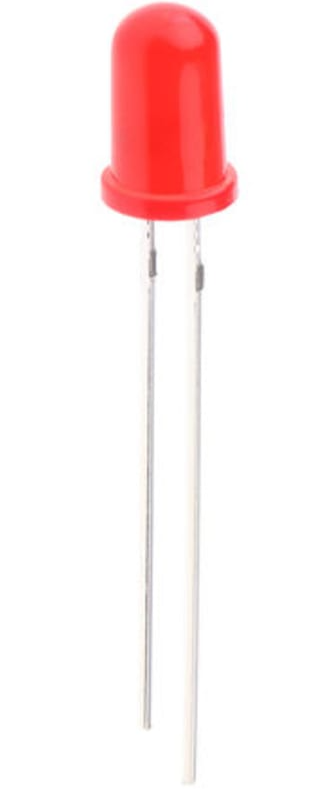

The Würth Elektronik 151051RS11000 is a 5 mm through-hole red indicator LED from the WL-TMRC series, designed for reliable visual indication in electronic circuits and PCB assemblies. It features a diffused round lens and produces red light with a dominant wavelength around 645 nm, making it suitable for clear status indication in control panels, instrumentation, and consumer electronics.

This LED uses a standard T-1 3/4 (5 mm) package with two through-hole leads, enabling easy mounting on printed circuit boards. With a forward voltage around 2.1–2.5 V and a viewing angle of approximately 60°, it provides efficient illumination while maintaining low power consumption.

The device is designed for high reliability and long operating life, with standard 2.54 mm lead spacing and built-in stand-offs that simplify PCB assembly and ensure consistent mounting height.

Key Features

• 5 mm (T-1 3/4) through-hole red LED

• Diffused round lens for uniform light distribution

• Dominant wavelength: ~645 nm

• Forward voltage: ~2.1–2.5 V

• Viewing angle: ~60°

• 2-pin leads with 2.54 mm spacing for PCB mounting

• Long operational life and reliable performance

Technical Specifications

• LED Color: Red

• Package: 5 mm round (T-1 3/4)

• Mounting Type: Through-hole

• Forward Voltage: ~2.5 V

• Luminous Intensity: ~30 mcd

• Viewing Angle: 60°

• Dominant Wavelength: 645 nm

• Pins: 2 leads
