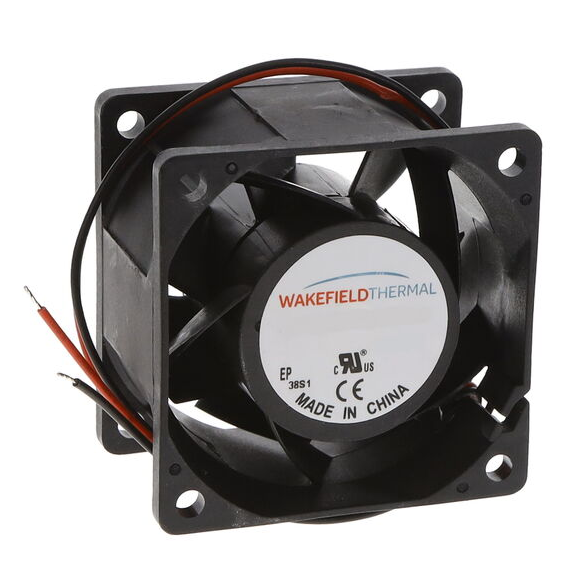

This 12V parachute inflation fan is designed to deliver high airflow in a compact form factor, making it suitable for rapid air movement and inflation applications where reliable performance is required. With its high-speed axial design, the fan provides strong, consistent airflow to support parachute inflation systems as well as other airflow-dependent uses.

Built for durability and continuous operation, the fan features a ball-bearing construction for extended service life and stable performance under demanding conditions.

Key Features

• Application: Parachute inflation and high-airflow systems

• Operating Voltage: 12 V DC

• Fan Size: 60 × 60 × 38 mm

• High Airflow Output: Approximately 67 CFM

• High Speed Operation: ~12,000 RPM

• Bearing Type: Ball bearing for reliability and longevity

• Electrical Load: ~1.38 A current draw

• Power Consumption: ~16.6 W

• Connection Type: 2-wire lead

• Noise Level: ~62 dB

• Operating Temperature Range: Approx. −10 °C to 70 °C

Typical Uses

• Parachute and deployment inflation systems

• Aerospace and UAV applications

• Industrial airflow and ventilation

• Electronics cooling where high airflow is required

• Custom engineering and experimental setups

  This 12V parachute inflation fan provides dependable, high-volume airflow in a compact package, making it well-suited for specialized applications that require fast and consistent air movement.
