$71.94 USD
Product Details

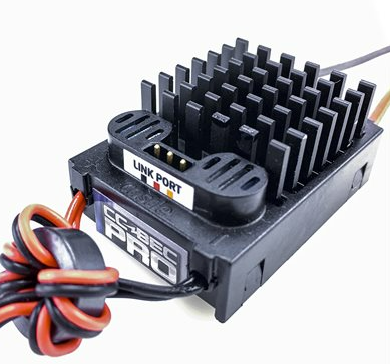

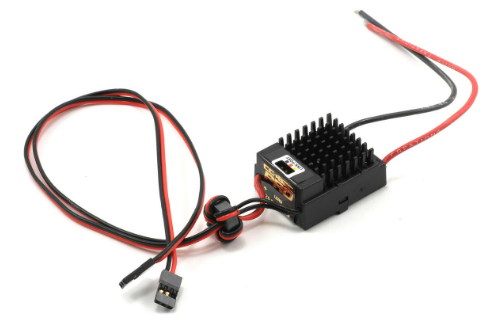

The Castle Creations 20A BEC Pro Voltage Regulator (Servo Rail BEC) is a high-output external Battery Eliminator Circuit (BEC) designed to provide clean and reliable power to sensitive radio equipment in RC applications. Capable of handling up to 12S LiPo input (50.4V) and delivering a peak output of 20A, this regulator is ideal for setups with high power demands, such as large-scale RC vehicles, aircraft, and helicopters.
Key Features
High Peak Current: Delivers up to 20A peak current, ensuring ample power for demanding components.
Adjustable Output Voltage: Output voltage can be set between 4.8V and 12.5V using the Castle Link programming tool (sold separately), allowing customization for various applications.
Wide Input Voltage Range: Compatible with input voltages up to 12S LiPo (50.4V), accommodating a broad range of power systems.
Compact and Lightweight Design: Measures 1.69" x 1.3" x 0.94" (43mm x 33mm x 24mm) and weighs 1 oz (29g) without wires, making it suitable for applications where space and weight are critical.
Designed for High-Demand Applications: Ideal for 1/5 scale cars, large electric aircraft, and 500-size or larger helicopters that utilize multiple high-powered digital servos, lights, winches, and other accessories.
Specifications
Parameter Value
Part Number CSE010-0004-01
Peak Current 20A
Continuous Current Varies with input voltage:
16V input: 15A
24V input: 13A
32V input: 11A
40V input: 9A
48V input: 8A
Adjustable Output Voltage 4.8V to 12.5V (via Castle Link)
Default Output Voltage 5.1V
Input Voltage Range Up to 12S LiPo (50.4V)
Dimensions (LxWxH) 1.69" x 1.3" x 0.94" (43mm x 33mm x 24mm)
Weight 1 oz (29g) without wires
Programmability Yes, via Castle Link USB Adapter (sold separately)
Waterproof No
Important Notes
The CC BEC Pro should not be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.
Adjustments to the output voltage require the Castle Link programming tool, which is sold separately.
Applications
The CC BEC Pro is suitable for a variety of RC applications, including:
1/5 scale RC cars with multiple high-powered servos
Large electric aircraft using four or more digital servo
RC crawlers and monster trucks with high-powered accessories
